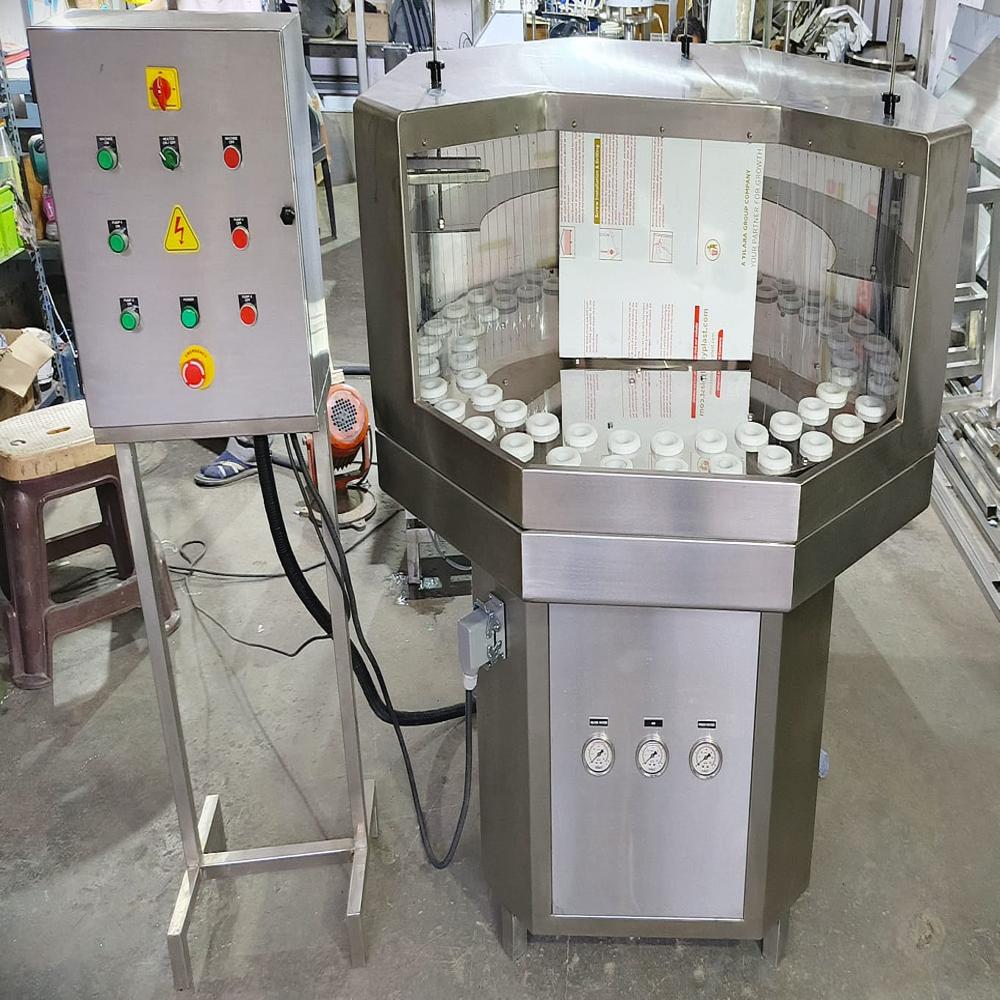

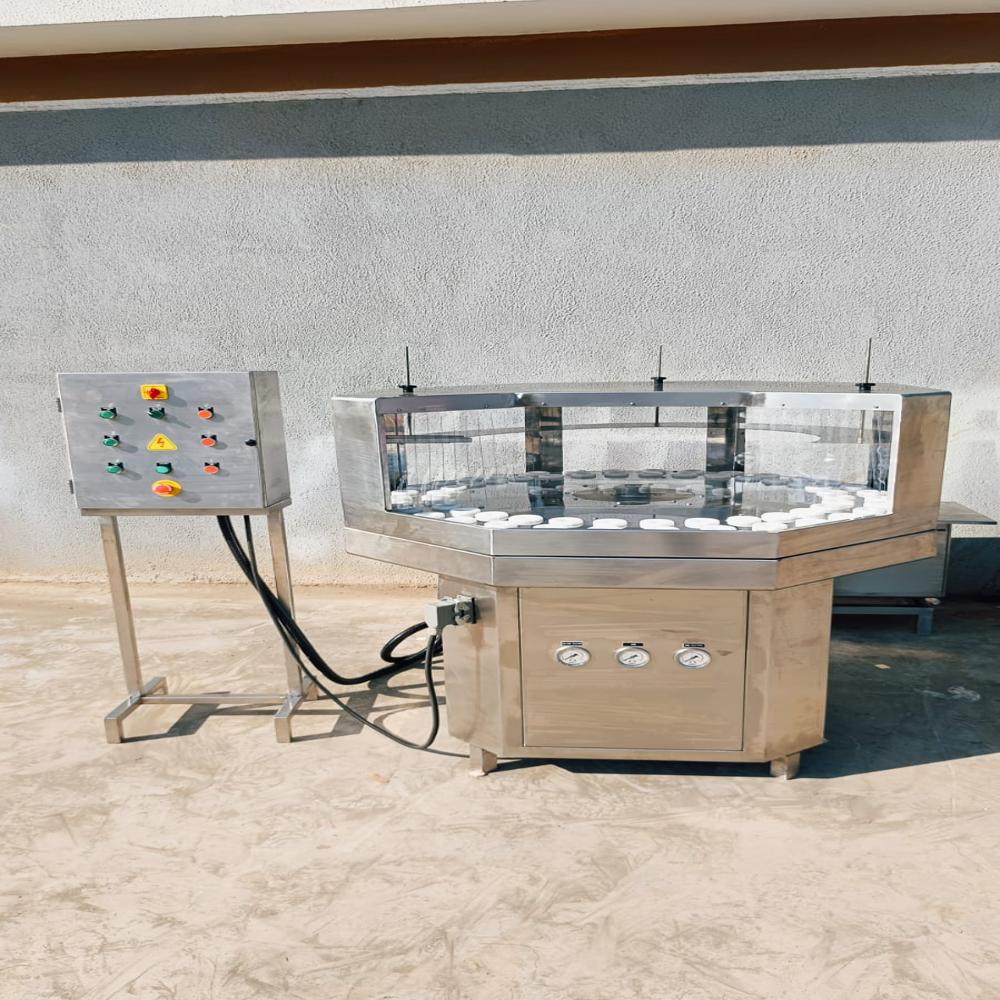

Semi Automatic Rotary Bottle Washing Machine
The Semi Automatic Rotary Bottle Washing Machine is specially designed for efficient internal and external washing of bottles and containers used in pharmaceutical, cosmetic, chemical, food and beverage industries. The machine is manufactured with SS316 product contact parts and SS304 non-product contact parts to ensure durability, corrosion resistance and hygienic operation.

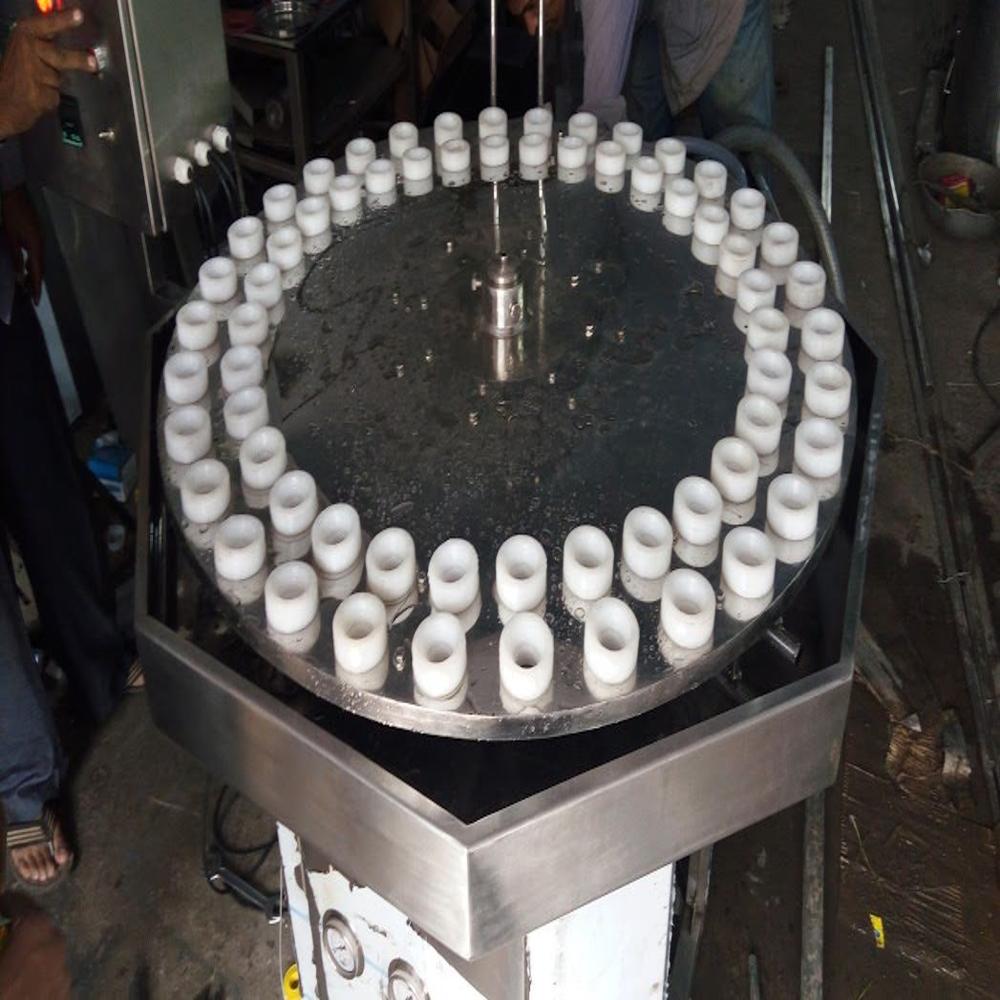

The machine operates on a rotary indexing principle and is equipped with specially designed cup holders for smooth handling of containers during the washing process. Bottles are automatically transferred through cup holders and passed through multiple washing stations to ensure effective removal of dust, particles and contaminants before the filling operation.
The machine is suitable for handling a wide range of bottle sizes with easy changeover and minimum maintenance requirements. Its compact design, user-friendly operation and robust construction make it an ideal solution for medium and high-volume production lines.
Features
Semi Automatic Operation
Cup Holder Based Bottle Handling System
Rotary Indexing Mechanism
Multiple Stage Internal & External Washing
Inverted Bottle Washing Operation
Suitable for Pharmaceutical, Cosmetic, Food & Chemical Industries
Suitable for Glass and Plastic Bottles
SS316 Product Contact Parts
SS304 Machine Structure
Adjustable Working Height
Adjustable Bottle Size Change Parts
Continuous Rotary Washing Process
High Washing Efficiency
Low Maintenance Design
Robust and Reliable Performance
User Friendly Operation
GMP Compliant Stainless Steel Construction
Technical Specifications of Semi Automatic Rotary Bottle Washing Machine
| Parameter |
Specification |
| Model |
HMBW-64 / 96 |
| Bottle Diameter |
15 mm to 70 mm |
| Bottle Height |
50 mm to 270 mm |
| Neck Diameter |
21 mm to 25 mm |
| Output Speed |
2,800 to 8,000 Bottles/Hour |
| Working Height |
850 50 mm Adjustable |
| Power Consumption |
5.0 KW |
| Power Supply |
3 Phase, 440V AC, 50Hz |
| Air Consumption |
5 CFM |
| Air Pressure |
4 to 6 Kg/cm |
| Net Weight |
Approx. 450 Kg |
| Machine Dimensions |
1600 mm (L) 1300 mm (W) 1300 mm (H) |
| Number of Cup Holders |
64 / 96 |
| Wash Cycle |
4 Inner + 1 Outer |
| Tank Capacity |
75 Litres (2 Nos.) |
Applications
Pharmaceutical Bottles
Syrup Bottles
Cosmetic Bottles
Chemical Bottles
Food & Beverage Containers
Laboratory Bottles
Manufactured By:H M Pharma Machines
FAQs of Semi Automatic Rotary Bottle Washing Machine
Q: What is the output capacity of the machine?
A: The machine is available in different models with output capacities ranging from 2,800 to 8,000 bottles per hour depending on bottle size and machine configuration.
Q: What type of containers can be washed in this machine?
A: The machine is suitable for pharmaceutical, cosmetic, chemical, food and beverage bottles and containers within the specified size range.
Q: What material is used for machine construction?
A: All product contact parts are manufactured in SS316 stainless steel while non-product contact parts are manufactured in SS304 stainless steel for hygienic and corrosion-resistant operation.
Q: Does the machine provide internal and external washing?
A: Yes, the machine is designed to perform effective internal and external washing through multiple washing stations for thorough cleaning.
Q: Is changeover possible for different bottle sizes?
A: Yes, the machine is designed for easy size changeover with minimum downtime and simple adjustment procedures.
Q: What industries can use this machine?
A: The machine is widely used in pharmaceutical, cosmetic, chemical, food, beverage and laboratory applications.
Q: What are the key advantages of this machine?
A: The machine offers high washing efficiency, robust stainless steel construction, easy operation, low maintenance requirements and reliable performance.
